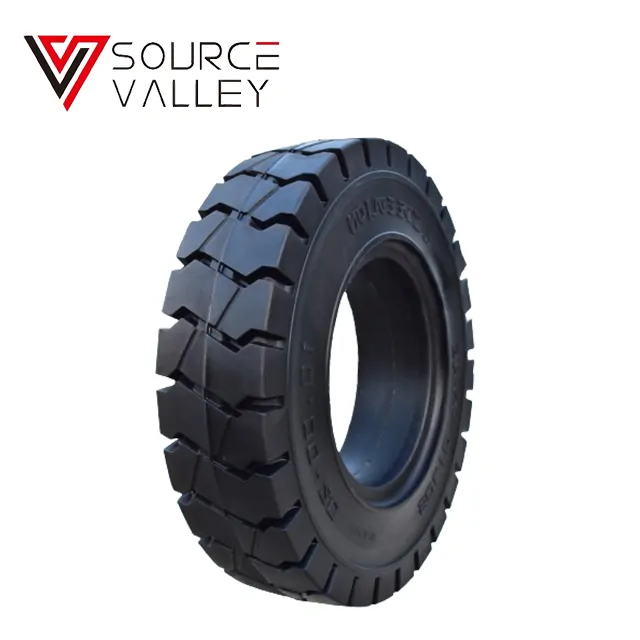

10.00-20

Quantity:
Availability:





Inquire Add to Basket

Brand:
SPEEDLION

Product Description

Features:

It is mainly characterized by strong damping ability, high wear resistance, high elasticity, cutting resistance and so on!

Tire size	Rim size	Tyre weight	inch				weight			Static load
		Tyre weight	diameter +/-3%		width +/-3%		6km/h	10km/h	25km/h	Max Load
		kg	inch	mm	inch	mm	kg	kg	kg	kg
10.00-20 7.5"	7.50-20	168	40.9	1040	10	253	7260	6600	6000	16000
10.00-20 7.5"	7.50-20	168	41.3	1050	10	254	7260	6600	6000	16333
11.00-20 8.0”	8.00-20	193.0	41.3	1050	10.6	270	7865	7150	6500	17333
11.00-20 8.0”	8.00-20	193.0	42.9	1090	10.8	275	7865	7150	6500	18933
12.00-20 8.5"	8.50-20	260.3	43.3	1100	11.3	286	8470	7700	7000	20200
12.00-20 8.5"	8.50-20	260.3	43.3	1150	11.8	300	8470	7700	7000	22867
12.00-24	8.50-24	271.0	48.8	1240	12.8	325	9075	8250	7500	24333
13.00-20	10.00-20	268.0	43.3	1100	12.7	322	8460	7691	6992	22667
13.00-24	8.50-24	323.0	51.6	1310	13	330	7714	7013	6375	26000
14.00-20	10.00-20	376.0	49.2	1250	13.8	350	12407	11279	10254	30867
14.00-24	10.00-24	427.0	53.6	1361	14.2	360	13310	12100	11000	30000
14.00-25	10.00-25	417.0	53.5	1360	14.2	360	13310	12100	11000	30000
14/65-20	10.00-20	228.0	40.6	1030	13.2	336	8470	7700	7000	20867
15-20	11.00-20	180	38.2	970	14.6	370	8470	7700	7000	14933
15x4.5-8	3.00-8	10.0	15.4	390	4.7	120	1180	1073	909	2667
16.00-25	11.25-25	672.0	59.4	1510	16.9	430	15730	14300	13000	39333
16x6-8	4.33-8	14.0	16.3	413	5.3	134	1533	1394	1181	3373
17.5-25	14.00-25	515.0	53.6	1361	18.1	461	9680	8800	8000	37333
18.00-25	13.00-25	860.0	63.8	1620	19.3	490	18150	16500	15000	57400
18.00-33	13.00-33	990.0	72.5	1842	18	458	13310	12100	11000	50000
18-20	14.00-20	310	42.6	1082	18	458	9680	8800	8000	21933
18x7-8	4.33-8	19.5	17.5	445	6.5	166	2360	2145	1818	4733
20.5-25	17.00-25	700.0	58.7	1490	20.9	530	10890	9900	9000	52667
200/50-10	6.00-10	20.0	18.0	458	7.7	196	2466	2242	1900	4733
21×8-9	6.00-9	40.0	21.2	538	8	204	3245	2950	2500	7467
22x10-12	7.00-12	41.1	22.0	560	9.4	240	4543	4130	3500	7200
22x10-16	8.00-16	34.0	22.1	562	9.9	251	5192	4720	4000	4667
22x12-12	9.00-12	47.0	21.6	548	11.4	290	5192	4720	4000	8400
22x13-15	11.00-15	49.1	22.0	560	13	330	5192	4720	4000	7000
22x14-16	12.00-16	55.5	22.0	560	14	356	6230	5664	4800	6467
23.5-25	19.50-25	1173	62.6	1590	26.6	676	14597	13270	12064	76667
23X8.5-12	6.00-12	44.0	23	584	8.3	210	2434	2213	1875	5133
23x9-10	6.50-10	46.0	22.8	578	8.7	220	3894	3540	3000	8533
250-15	7.00-15 7.50-15	74.0	29.2	742	9.3	236	5192	4720	4000	10133
26.5-25	22.00-25	1521.8	68.9	1750	26.4	670	21357	19415	17650	89333
27×10-12	8.00-12	65.0	26.2	665	9.4	240	4945	4496	3810	10267
27×10-18	8.00-18	55.0	26.0	660	10	254	6750	6136	5200	6133
27×11-18	9.00-18	56.0	26.0	660	11	279	7139	6490	5500	6733
28x12.5-15	9.75-15	94.6	28.8	731	11.8	300	6490	5900	5000	12467
28x9-15	7.00-15	63.0	28.3	718	8.4	214	3894	3540	3000	8533
29.5-25	25.00-25	1920	73.6	1870	29.5	750	26378	23980	21800	109333
29.5-35	22.00-35	2240	81.6	2072	30.7	780	27225	24750	22500	105333
29.5-45	22.00-45	1835	79.6	2022	30.5	775	28600	26000	23636	114667
29x10-20	8.00-20	59.0	28.3	720	9.8	250	6655	6050	5500	6267
3.00-15	8.00-15	124.0	33.0	837	11.3	286	7197	6543	5545	15467
30X10-16	6.00-16	68.0	30.1	765	9.3	236	4326	3933	3333	7467
30X10-18	7.00-18	63.0	30.1	765	9.7	246	4326	3933	3333	6533
315/70-15	9.00-15	142.0	33.3	846	12.8	326	7788	7080	6000	18000
31X10-16	6.00-16	73.0	31.1	790	9.3	236	4326	3933	3333	7933
31X10-20	7.00-20	67.0	31.1	790	10	254	4235	3850	3500	6067
33X12-20	8.00-20	90.5	33	837	11.4	290	5929	5390	4900	8400
34X10-20	7.00-20	82.5	34	863	10	254	4235	3850	3263	7467
34x12-20	8.00-20	110.0	34.0	864	11.4	290	6522	5929	5390	12267
355/50-20	9.00-20	126.0	33.6	853	12.4	315	11300	10273	9339	15333
355/65-15	9.75-15	156.0	33.3	846	12.8	326	7788	7080	6000	18000
36X12-20	8.00-20	120	36	915	12	305	4840	4400	4000	10267
385/65-24	10.00-24	207.0	42.1	1070	14.6	370	11000	10000	9091	15867
4.00-8	3.00-8	10.4	16.3	413	3.9	100	1120	1018	863	2480
41X17-24	15.00-24	225.0	41	1041	17	432	13000	11818	10744	15400
42X12-24	8.50-24	171.0	41	1042	11.8	300	9075	8250	7500	15333
445/65-24	12.00-24	311.0	45.3	1150	17.3	440	13000	11818	10744	21467
44X18-20	14.00-20	327.0	42.1	1069	18	457	9075	8250	7500	30667
48X14-24	10.00-24	324.0	48.4	1230	13.6	345	9983	9075	8250	26000
5.00-8	3.00-8	15.8	17.5	445	5.3	134	1533	1394	1181	3860
5.7-12	4.00-12	21.5	22	558	5.7	144	1755	1595	1352	3267
6.00-15	4.50-15	42.7	27.7	704	6.7	169	2831	2574	2181	6533
6.00-9	4.00-9	28.0	21.3	541	6.1	156	2064	1876	1590	5333
6.50-10	5.00-10	36.0	22.8	578	6.8	172	2713	2466	2090	6667
7.00-12	5.00-12	47.7	26.2	665	7.2	184	3245	2950	2500	7333
7.00-15	5.50-15 6.00-15	57.5	29.6	752	7.1	180	3894	3540	3000	7933
7.00-15	6.00-15	58.5	29.6	752	7.1	180	3894	3540	3000	7933
7.50-15	6.00-15	74.0	30.9	784	7.8	197	4543	4130	3500	9467
7.50-16	6.00-16	91.0	31.9	810	8.7	222	4307	3915	3318	10600
8.25-12	5.00-12	62.5	28.1	714	7.5	190	4425	4023	3409	9267
8.25-15	6.50-15	92.0	33.0	837	8.3	211	5841	5310	4500	11400
8.25-16	6.00-16	80.0	32.7	830	8.3	210	5627	5115	4335	10667
8.25-20	6.00-20	125.0	38.2	970	9.1	230	4840	4400	4000	12667
9.00-16	7.00-16	107.0	35.0	890	8.7	220	5841	5310	4500	12667
9.00-20	7.00-20	168.0	40.6	1030	10.2	260	6655	6050	5500	16133

forklift tire Solid Tire tire tyre
