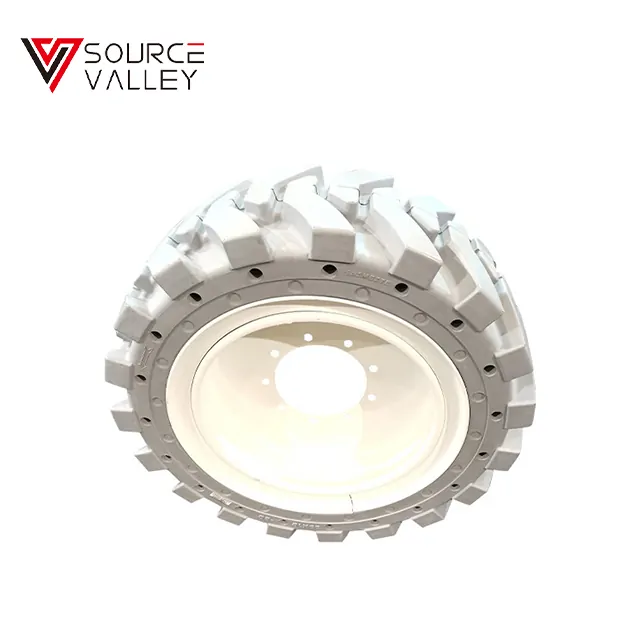

33x12-20

BOOM  LIFT  TIRES

Service in various industries high-altitude work, equipment installation, maintenance and other mobile high-altitude work prod- ucts. Due to the requirements of safety performance and use environment, the general use of environmental protection non-trace solid tires instead of the general use of ultra-wear-resisting, high elastic solid tires.

NO	Tyre Size	Rim	Qutside diamete /mmr	Section width /mm	Load /kg	Alternative tyre specification	Suitable model
1	30*10-16	6.0-16	790	236	3250KGS	31*10*10 10-16.5	Bobcat Caterpillar
2	31*10-16	6.0-16	790	255	3425KGS	31*10*10 10-16.5	Bobcat Caterpillar
3	33*12-20	8.0-20	837	290	4045KGS	31*10*10 10-16.5	Bobcat Caterpillar
4	36*12-20	8.0-20	935	290	5245KGS	31*10*10 10-16.5	Bobcat Caterpillar
5	36*14-20	8.5-20	935	360	6115KGS	31*6*11 12-16.5	Genie S360;JLG600S
6	15.00-20	11.00-20	980	370	6345KGS	/	Boom Lift
7	18.00-20	14.00-20	1082	457	8000KGS	/	Boom Lift
8	250-15	7.5-15	735	250	4305KGS	31*6*11 12-16.5	Bobcat Caterpillar
9	315-22	/	810	318	3975KGS	/	Bobcat Caterpillar
10	385/65-24	10.00-24	1060	360	7636KGS	15-22.5 385/65D22.5	Genie S-3200,S80JLG-860
11	445/65-24	12.00-24	1150	430	9000KGS	18-22.5 445/65D22.5	Genie S-3800,S-100, S-125,JLG-1350
