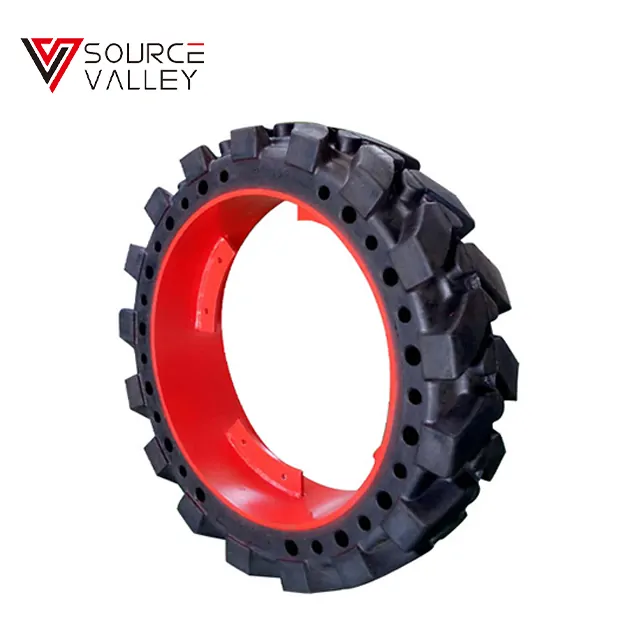

CONSTRUCTION MACHINERY TYRE
Large load, small flow resistance, low energy consumption, good wear resistance, puncture resistance, anti-tire blowout, main-tenance free, suitable for port, metallurgy industry front crane, gantry crane, loader and other special vehicles.
| NO | Tyre Size | Rim | overall diameter /mm | section width /mm | Max Load(KG) | ||
| 10MPH | 16MPH | 25MPH | |||||
| 1 | 8.25-16 | 6.5 | 805 | 194 | 3460 | 3190 | 2955 |
| 2 | 9.00-16 | 6.0 | 884 | 259 | 3760 | 3460 | 3185 |
| 3 | 10.00-16 | 8.0 | 884 | 278 | 5230 | 4775 | 3670 |
| 4 | 20.5/70-16 | 10.0 | 878 | 275 | 6135 | 5965 | 5625 |
| 5 | 16/70-16 | 10.0 | 878 | 275 | 6135 | 5965 | 5625 |
| 6 | 16/70-20 | 13.0 | 1012 | 375 | 9445 | 9105 | 8600 |
| 7 | 9.00-20 | 6.5 | 1038 | 259 | 5135 | 4690 | 4355 |
| 8 | 10.00-20 | 8.0 | 1073 | 278 | 6085 | 5560 | 5165 |
| 9 | 11.00-20 | 8.0 | 1095 | 300 | 6430 | 5870 | 5450 |
| 10 | 12.00-20 | 8.5 | 1180 | 310 | 7435 | 6785 | 6300 |
| 11 | 14.00-24 | 10.0 | 1368 | 375 | 10135 | 9255 | 8595 |
| 12 | 17.5-25 | 14.00-25 | 1344 | 437 | 9680 | 8800 | 8000 |
| 13 | 20.5-25 | 17.00-25 | 1490 | 530 | 10890 | 9900 | 9000 |
| 14 | 23.5-25 | 19.00-25 | 1585 | 585 | 14597 | 13270 | 12064 |
| 15 | 26.5-25 | 22.00-25 | 1750 | 670 | 18513 | 16830 | 15300 |
| 16 | 29.5-25 | 25.00-25 | 1870 | 750 | 26378 | 23980 | 21800 |
CONSTRUCTION MACHINERY TYRE
Large load, small flow resistance, low energy consumption, good wear resistance, puncture resistance, anti-tire blowout, main-tenance free, suitable for port, metallurgy industry front crane, gantry crane, loader and other special vehicles.
| NO | Tyre Size | Rim | overall diameter /mm | section width /mm | Max Load(KG) | ||
| 10MPH | 16MPH | 25MPH | |||||
| 1 | 8.25-16 | 6.5 | 805 | 194 | 3460 | 3190 | 2955 |
| 2 | 9.00-16 | 6.0 | 884 | 259 | 3760 | 3460 | 3185 |
| 3 | 10.00-16 | 8.0 | 884 | 278 | 5230 | 4775 | 3670 |
| 4 | 20.5/70-16 | 10.0 | 878 | 275 | 6135 | 5965 | 5625 |
| 5 | 16/70-16 | 10.0 | 878 | 275 | 6135 | 5965 | 5625 |
| 6 | 16/70-20 | 13.0 | 1012 | 375 | 9445 | 9105 | 8600 |
| 7 | 9.00-20 | 6.5 | 1038 | 259 | 5135 | 4690 | 4355 |
| 8 | 10.00-20 | 8.0 | 1073 | 278 | 6085 | 5560 | 5165 |
| 9 | 11.00-20 | 8.0 | 1095 | 300 | 6430 | 5870 | 5450 |
| 10 | 12.00-20 | 8.5 | 1180 | 310 | 7435 | 6785 | 6300 |
| 11 | 14.00-24 | 10.0 | 1368 | 375 | 10135 | 9255 | 8595 |
| 12 | 17.5-25 | 14.00-25 | 1344 | 437 | 9680 | 8800 | 8000 |
| 13 | 20.5-25 | 17.00-25 | 1490 | 530 | 10890 | 9900 | 9000 |
| 14 | 23.5-25 | 19.00-25 | 1585 | 585 | 14597 | 13270 | 12064 |
| 15 | 26.5-25 | 22.00-25 | 1750 | 670 | 18513 | 16830 | 15300 |
| 16 | 29.5-25 | 25.00-25 | 1870 | 750 | 26378 | 23980 | 21800 |
