SOURCE VALLEY

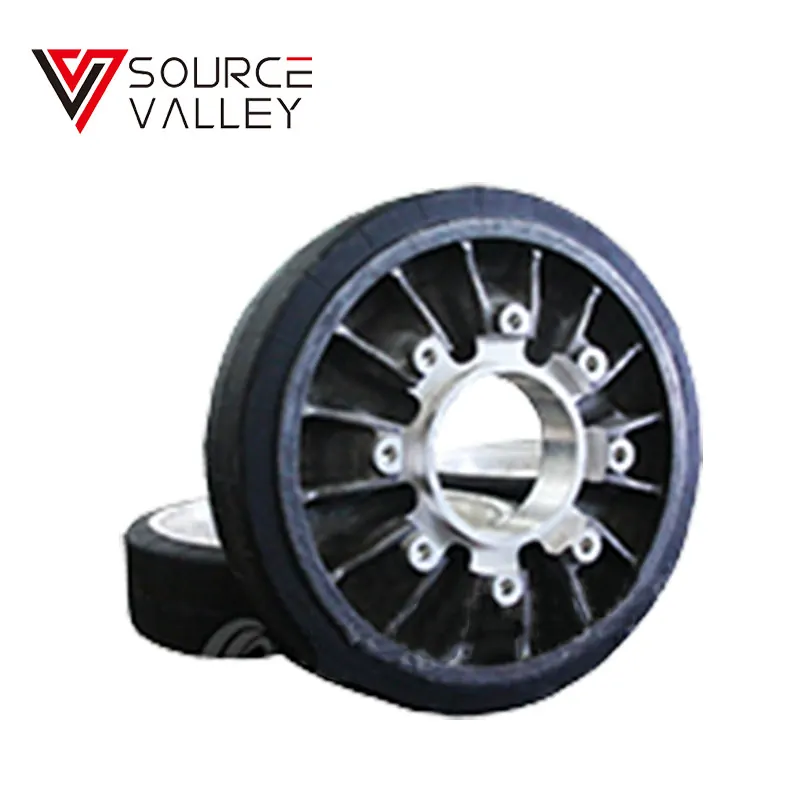

Tired wheel is solid elastomer tired wheel for caterpillar tank. Its function is transfer power to track to drive the tank. The feature of the tire is large load, high heat and abrasion resistance.
| SIZE | PR | PATTERN | MAX LOAD | PRESSURE | RIM |
| (KN) | (kPa) | (mm) | |||
| 200×80 | 4N | TT | 2.06 | 343 | 80±3 |
| 255×110 | 4N | TT | 3.14 | 392 | 103±3 |
| 300×125 | 4N | TT | 3.65 | 343 | 123±4 |
| 330×130 | 6N | TL | 9 | 1200+50 | 122±4 |
| 380×150 | 4N | TT | 7.35 | 350 | 140±5 |
| 390×125-178 | 6N | TL | 8.41 | 981 | 118-125 |
| 400×150-Ⅱ | 4N | TT | 9.07 | 392 | 155±5 |
| 430×150 | 6N | TL | 7.8 | 530+30 | 153±5 |
| 450×140 | 8N | TL | 20 | 1250+50 | 129±4 |
| 450×165 MODEL2 | 6N | TL | 8.7 | 450+50 | 173±5 |
| 470×210 | 6N | TT | 11.28 | 343 | 210±5 |
| 480×200 | 6N | TT | 20.58 | 640 | 202±5 |
| 480×200-Ⅲ | 6N | TT | 6.8 | 539/441 | 200±5 |
| 500×140 | 8N | TL | 26.07 | 1200+50 | 128±5 |
| 500×150 | 4N | TL | 10.4 | 880+50 | 135±5 |
| 500×150-Ⅱ | 4N | TT | 5.81 | 314 | 144±5 |
| 500×180G-Ⅰ | 6N | TL | 15 | 735 | 169±5 |
| 500×180G-Ⅳ | 8N | TT | 10.3 | 686 | 167±5 |
| 500×180H | 6N | TL | 12.66 | 735+50 | 169±5 |
| 520×125 MODEL05 | 6N | TL | 13.72 | 1150+50 | 115±4 |
| 560×210-Ⅱ | 6N | TL | 19.6 | 883 | 200±5 |
| 560×210G-Ⅰ | 8N | TL | 34.1 | 1080-50 | 198±7 |
| 560×210H | 8N | TL | 25.44 | 930+50 | 196±5 |
| 560×210-229 | 6N | TL | 26 | 785 | 198±7 |
| 570×140 | 8N | TT | 25.48 | 1000+50 | 136±6 |
| 595×185 | 6N | TT | 18.78 | 460+50 | 170±5 |
| 595×230 | 8N | TT | 17.85 | 686+40 | 214±5 |
| 595×230-Ⅱ | 8N | TL | 16.1 | 785 | 222±5 |
| 595×230G | 8N | TL | 20.14 | 785+50 | 222±5 |
| 595×230H | 8N | TL | 16.78 | 785+50 | 222±5 |
| 600×180-Ⅱ | 6N | TT | 18.78 | 441 | 167±5 |
| 610×185-305 MODEL | 10N | TL | 26.5 | 700+50 | 183±5 |
| 610×215 MODEL1 | 10N | TL | 35 | 850 | 210±5 |
| 620×180 | 8N | TT | 43.12 | 1130 | 160±5 |
| 620×180 4A | 8N | TL | 32.34 | 1177+49 | 166±5 |
| 620×180E-Ⅰ | 10N | TL | 33.2 | 1000+50 | 166±5 |
| 620×180G-Ⅰ | 10N | TL | 33.2 | 1500+50 | 166±5 |
| 660×160-Ⅶ | 8N | TT | 27.95 | 834-902 | 160±5 |
| 660×200-Ⅶ | 8N | TT | 37.66 | 1079+49 | 178±5 |
| 660×200T | 8N | TL | 33.4-34.1 | 1079+49-1128+49 | 180±5 |
| 660×250 | 12N | TL | 52.97 | 1500+50 | 230±8 |
| 680×260 | 8N | TL | 44.15 | 930+40 | 254±6 |
| 680×260B-Ⅰ | 8N | TL | 44.13 | 932+40 | 254±6 |
| 680×260B-Ⅱ | 10N | TL | 55.4 | 950+50 | 254±6 |
| 680×260G-Ⅰ | 8N | TL | 55.4 | 1200+50 | 254±6 |
| 680×260H | 8N | TL | 38 | 932+39 | 254±6 |
| 680×260M | 10N | TL | 55.4 | 1200+50 | 254±6 |
| 700×250-Ⅱ | 8N | TT | 14.96 | 588 | 238±5 |
| 720×320 | 10N | TT | 53.9 | 650+50 | 303±5 |
| 730×210-381 | 12N | TL | 53.81 | 1180+50 | 204±6 |
| 800×200 42A | 8N | TT | 44.15 | 932+49 | 209±5 |
| 800×260-Ⅲ | 6N | TT | 27.46 | 441 | 256±10 |
| 810×220-416 | 10N | TL | 73.55 | 1520+49 | 214±5 |
| 820×260 | 14N | TL | 74.5 | 1400+50 | 230±7 |
| 830×205 | 10N | TT | 45.01 | 1079 | 187±5 |
| 830×205 | 10N | TL | 48.35 | 1128+49 | 194±5 |
| 830×205G | 10N | TL | 55.35 | 1130+50 | 194±5 |
| 830×205H | 12N | TL | 49.91 | 1226-49 | 194±5 |
| 840×290 | 12N | TL | 83.3 | 1177+49 | 270±10 |
| 840×300-Ⅱ | 10N | TT | 35.84 | 510+29 | 278±5 |
| 840×360 | 14N | TL | 90.25 | 1080+50 | 350±6 |
| 850×250G-Ⅰ | 12N | TL | 87.76 | 1620+50 | 240±10 |
| 850×250H | 12N | TL | 67.91 | 1320+50 | 240±10 |
| 850×300 | 16N | TL | 121.23 | 1700+50 | 37±2 |
| 865×280 | 8N | TT | 42.17 | 686 | 265±5 |
| 880×230 | 14N | TT | 80.36 | 1400+50 | 208±8 |
| 930×305-Ⅳ | 10N | TT | 71.04 | 785 | 275±5 |
| 950×300 | 14N | TL | 89.18 | 1225+50 | 274±8 |
| 1030×350 | 16N | TL | 142.24 | 1570+50 | 318±10 |
| 1030×350 8A | 18N | TL | 161.81 | 1860+100 | 315.0±7.0 |
| 1030×350B-Ⅰ | 16N | TL | 142.24 | 1570+50 | 317±8 |
| 1030×350B-Ⅱ | 16N | TL | 154 | 1250+50 | 317±8 |
| 1050×400 | 8N | TT | 55.16 | 441 | 384±6 |
| 1100×330 | 10N | TL | 66.71 | 735＋49 | 336±10 |
| 1300×480 | 14N | TL | 118.7 | 686.4＋40 | 450±12 |
| 1300×480 | 14N | TT | 118.7 | 686＋49 | 450±12 |
| 15×6.0-6 | 6PR | TT | 13.72 | 470 | 150-160 |
| 18×5.5 | 14PR | TL | 27.58 | 1485 | 140±5 |
| 18×5.7-8 | 18PR | TL | 38.23 | 2069 | 136-145 |
| 18×6.5-8 | 12PR | TL | 22.25 | 1034 | 157-165 |
| 22×6.6-10 | 20PR | TL | 26.23 | 1862 | 162.6-172.7 |
| 22×8.5-11 | 16PR | TL | 44.45 | 1448 | 205.7-215.9 |
| 24×8.0-13 | 18PR | TL | 55.57 | 1964 | 197±6 |
| 30×11.5-14.5 | 26PR | TL | 115.6 | 1827 | 279-292 |
| 37×11.5-16 | 28PR | TL | 330.5 | 1689 | 292 |
| 39×13 | 16PR | TL | 76.49 | 793 | 311-330.2 |
| 46×16 | 28\30PR | TL | 199.3 | 1550 | 382-406 |
| 49×17 | 32PR | TL | 224.04 | 1448 | 421-443 |
| 6.00-6 | 6PR | TT | 11.27 | 290 | 150-160 |
| 6.50-10 | 6N | TL | 21.41 | 785 | 167±8 |
| 8.00-6 | 8PR | TL | 11.76 | 306-357 | 186.7-201.9 |
| 12.5-16 | 12PR | TL | 56.9 | 518 | 305-324 |
| 20.00-20 | 26PR | TL | 206.7 | 860 | 488-511 |
| 680×260R | 4N | TL | 48.8 | 1500 | 245±6 |
